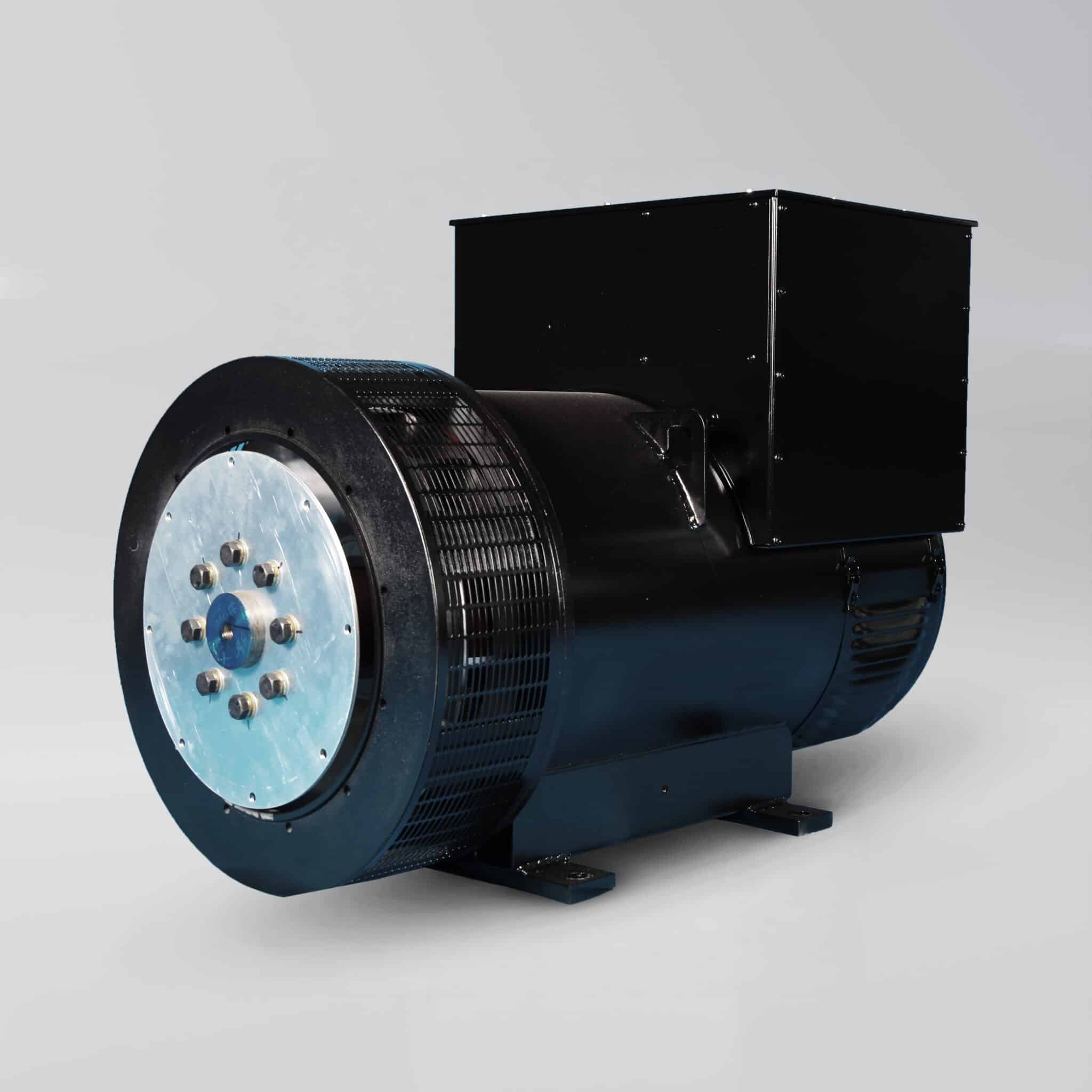

The StromerPower 13.5kVA Single Phase Alternator (STRO-13K) is a commercial-grade, single-phase low-voltage AC alternator engineered within a strict ISO 9001 quality assurance environment to deliver uncompromising reliability. Designed as a premium component for stationary diesel generator sets, mobile power plants, and industrial equipment, this 4-pole brushless alternator features high efficiency, low reactances, and exceptional motor-starting capacity under heavy starting loads.

  • Dual-Rating Performance: Delivers 13.5kVA / 13.5kW Prime power and up to 14.9kVA / 14.1kW Standby power output at a stable 50Hz frequency (PF = 1).

  • Advanced Voltage Regulation: Features the industry-standard SX460 AVR model maintaining a tight +/- 1% voltage regulation to shield sensitive equipment from fluctuations.

  • Clean Power Winding: Implements a 2/3 pitch stator winding layout that cleanly suppresses lower-order harmonic distortion, keeping Total Harmonic Distortion (THD) under 5%.

  • Rugged Mechanical Interface: Built with a resilient single-bearing configuration optimised for native SAE 4 housing flange and SAE 7.5 clutch flex plate alignment setups.

  • Industrial Grade Protection: Outfitted with an IP23 weather-protective enclosure, Class H insulation, robust steel base, and dynamically balanced rotors compliant with ISO 1940 vibration specifications.

StromerPower
SUPERIOR QUALITY AND PERFORMANCE

Our company sets new global standards in quality in all the aspects from design, manufacturing, material selection, production and testing equipment, tooling, and quality control.

ABOUT THE ALTERNATOR
GENERAL SPECIFICATIONS

StomerPower 13.5kVA Alternator

The Stromer Power STRO-13K is built to serve as the structural backbone of dependable mobile and stationary power assets. Engineered inside a highly disciplined ISO 9001 quality assurance ecosystem, every alternator is manufactured using strict raw material selection and rigorous production standards. These alternators are deeply trusted across commercial, agricultural, refrigeration, and residential sectors, and are deployed in demanding government and military field installations where grid power is non-existent or deeply compromised. The mechanical frame features a rugged steel base and high-integrity protective shields specifically developed to absorb and withstand the brutal, continuous torsional vibrations generated by high-output diesel generator engines.

stromer-power-branded-black-alternator
stromer-power-alternators-part-03
ALTERNATOR DATA SHEET

At the core of the STRO-13K’s electrical performance is a high-efficiency brushless self-excitation system paired with a premier Class H insulation framework. To ensure the clean delivery of electricity required by modern electronics, the stator incorporates a sophisticated 2/3 pitch winding design. This specific geometric layout acts as an internal filter, suppressing lower-order harmonic waves and controlling voltage waveforms. As a result, the alternator limits Total Harmonic Distortion (THD) to under 5% , even when coping with problematic non-linear loads. This electrical balance minimises heat buildup, prevents insulation degradation, and optimises your motor-starting capacity.

StromerPower 13.5kVA Alternator Technical Specifications

  1. Brushless Self-Excitation & 4-Pole Efficiency: Built on a robust 4-pole, brushless architecture that delivers high efficiency and exceptional motor-starting capacity across industrial loads.

  2. Clean Power Delivery (2/3 Pitch Winding): Implements a premium 2/3 pitch stator winding configuration designed to suppress lower-order harmonics, keeping Total Harmonic Distortion (THD) under 5% to safeguard sensitive electronic equipment.

  3. Precise Automatic Voltage Regulation: Equipped with an integrated SX460 AVR module that maintains a strict voltage regulation tolerance of +/- 1% to handle load fluctuations cleanly.

  4. Standardised Engine Coupling (SAE 4/7.5): Configured with a single-bearing structural layout matching a native SAE 4 adapter housing flange and an SAE 7.5 clutch flex plate alignment for seamless engine integration.

  5. Industrial-Grade Thermal & Environmental Protection: Manufactured within an ISO 9001 quality system featuring high-tier Class H insulation, an IP23 weather-protective enclosure, and dynamically balanced rotors (ISO 1940) to withstand severe engine vibrations.

  •

PRODUCT SPECIFICATIONS

Weight 460 kg
Dimensions 105.3 × 72.8 × 115.8 cm
Brand

StromerPower
Product Type

Alternator
Alternator Prime Power

13.5kVA
Alternator Standby Power

14.9kVA
Rated Frequency

50Hz
Voltage

230v, 400V
Voltage Regulation

+/- 1%
Voltage Regulation Change (% UN)

+/- 1%
Phase Change Rate (%)

+/- 1%
Power Factor

1
Insulation Class

IM B35
Alternator Type

Brushless
Connection and Pole

4 Pole, Series Star
AVR Model

SX460
Stator

2/3 Pitch
Rotor

Single Bearing
